Reading Time: 4 minutes

In this blog we aim to setting a maven with HelloMaven example.

Maven.. What is it ?

Generally mvn is a “Build tool” . It is a site and documentation tool which extends ANT to download dependencies and plugins , set of reusable ant scriptlets.

This is an attempt to apply patterns to a project’s build infrastructure in order to promote comprehension and productivity by providing a clear path in the use of best practices.

It is written in java language and used to build jar file . For configuration it uses POM (project object model) which is stored in a “.pom”.

Why we need it?

It is a project management and comprehension tool. This provides a way to managing:

  • Build
  • Documentation
  • Reporting
  • Dependencies
  • Releases
  • Distribution

Let’s start with the installation…

How to install Maven

Prerequisite for mvn is JAVA as it is a java tool. Ensure JAVA_HOME environment variable is set and points to your JDK installation.

Verify it by using:

$ java -version

$ whereis java

For windows user

To download , use https://maven.apache.org/download.cgi

  • Extract distribution archive in any directory
    • unzip apache-maven-<version>-bin.zip
                              or
      tar xzvf apache-maven-3.6.3-bin.tar.gz
  • Add the bin directory of the created directory apache-maven-<version> to the PATH environment variable.
  • Add the maven path in .bashrc file
  • To verify installation
    Open a new command prompt (Winkey + R then type cmd) and then type

mvn -version

Output:
Command prompt maven
For ubuntu user

Using apt is a simple, straightforward process.

Update the package index and install Maven by entering the following commands:

$ sudo apt install maven

To verify the installation, run

$ mvn -v

output:
Ubuntu terminal

More Concepts about it

Important concepts in maven are as follows:

  • Build Life Cycle
  • Project Object Model
  • Plugins
  • Dependency Management

Build Life Cycle

The build lifecycle is a series of common stages through which all project builds naturally progress.The default lifecycle handles your project deployment, the clean lifecycle handles project cleaning, while the site lifecycle handles the creation of your project’s site documentation.

Phases in Build Life Cycle

Each of these build lifecycles is defined by a different list of build phases, wherein a build phase represents a stage in the lifecycle.

  • validate – validate the project is correct and all necessary information is available
  • compile – compile the source code of the project
  • test – test the compiled source code using a suitable unit testing framework. These tests should not require the code be packaged or deployed
  • package – take the compiled code and package it in its distributable format, such as a JAR.
  • verify – run any checks on results of integration tests to ensure quality criteria are met
  • install – install the package into the local repository, for use as a dependency in other projects locally
  • deploy – done in the build environment, copies the final package to the remote repository for sharing with other developers and projects.
Commands for build:

$ mvn clean

 clean  command handles project cleaning.

$ mvn compile

compile command compiles the source code.

$ mvn test

test command runs the test cases.

Rest of the phase of build cycle will work as above. Clean phase will be executed first that will remove the target directory with all the build data before starting so that it is fresh.

we can also use this command for clean and compile at a time

$ mvn clean compile

POM File

A Project Object Model or POM is the fundamental unit of work in Maven.

It is an XML file that contains information about the project and configuration details used by the build tool to the project.

When executing a task or goal, tool looks for the POM in the current directory. It reads the POM, gets the needed configuration information, then executes the goal(command).

The minimum requirement for a POM are the following:

  • project root
  • modelVersion – should be set to 4.0.0
  • groupId – the id of the project’s group
  • artifactId – the id of the artifact (example)
  • version – the version of the artifact under the specified group(1.0-SNAPSHOT)

<Project>
<modelVersion>4.0.0</modelVersion>
<groupId>com.knoldus.example</groupId>
<artifactId>example</artifactId>
<version>1.0-SNAPSHOT</version>
</project>

Plugins

They are where much of the real action is performed, plugins are used to: create jar files, create war files, compile code, unit test code, create project documentation, and on and on.

  • Goals are bound to specific stages in the lifecycle.

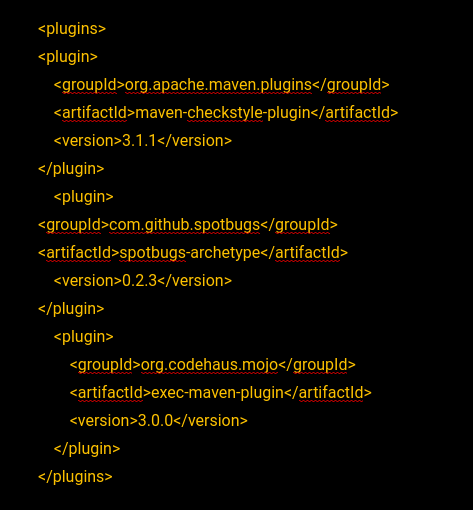

In this picture there are two plugins : checkstyle plugin and execute maven plugin which i have added .

Maven PLugins

Plugins are available on https://mvnrepository.com you can add any plugins which you want.

Dependency management

Dependency management is a mechanism for centralizing dependency information.

  • When you have a set of projects that inherit from a common parent, it’s possible to put all information about the dependency in the common POM and have simpler references to the artifacts in the child POMs.
  • Dependency management section is to control the versions of artifacts used in transitive dependencies.

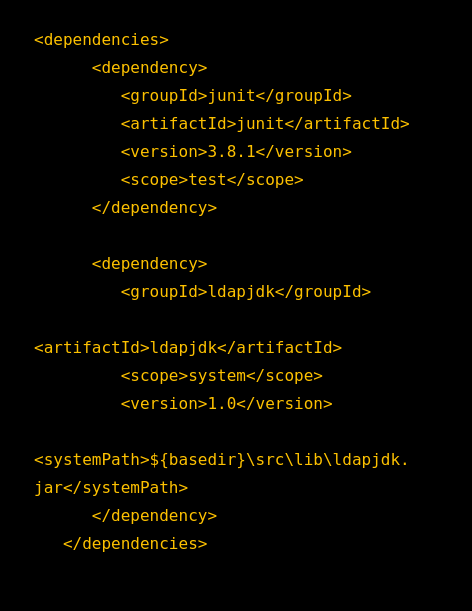

Dependency Maven

Example:

Let’s try to get it with an example:

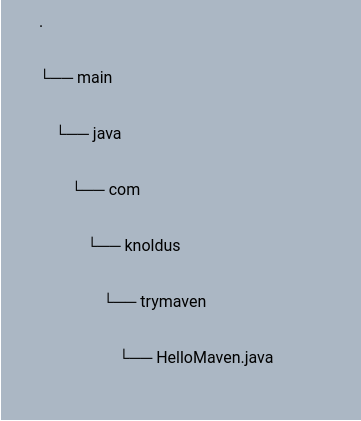

  • Your src directory should have the following directory structure.
Directory

Now we create a HelloMaven.java file:

public class HelloMaven {
public static void main(String[] args) {
System.out.println("Hello maven");
}
}

Output:

$ mvn clean compile

Output

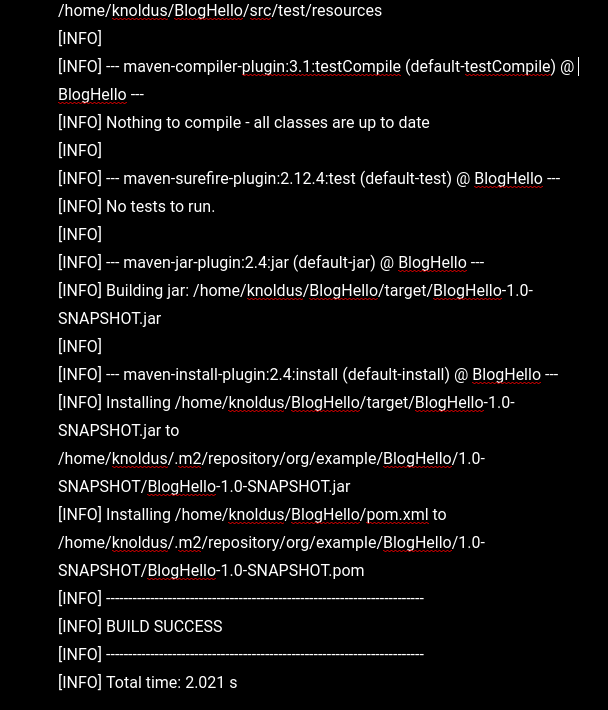

For creating a jar file we use this command:

$ mvn clean install

OUtput

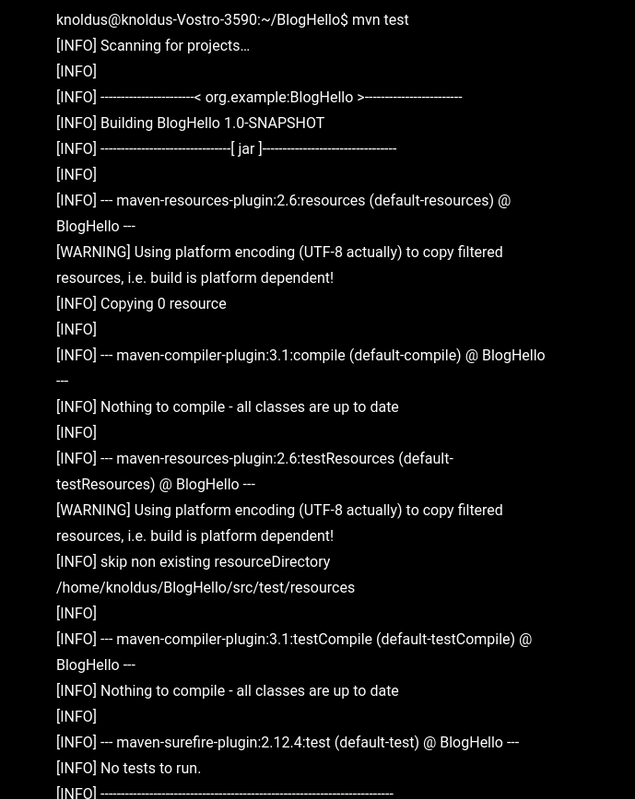

$ mvn test

Executed

Now the jar file is created under the target folder after building phase is successfully executed.

Reference:

https://maven.apache.org/
